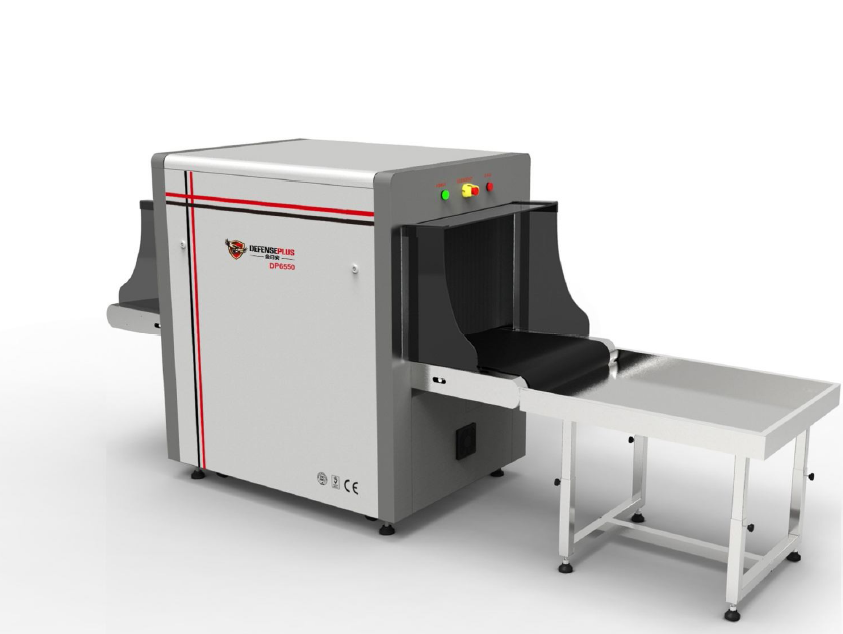

X-Ray Baggage Scanner
Brand Name: Defense Plus
Model : DPX-6550
High resolution image
♦General Specification:
Tunnel Size: 650mm*500mm
Conveyor Speed: 0.22m/s
Conveyor height: 695mm
Conveyor Max Load: 170kg
X ray Does per inspection: <1.14 Sv
Wire Resolution: 40AWG typical
Spatial resolution Level: dial.0mm, Vertixal: dia 1.0mm
Penetration: 30mm steel guarantee, 32mm steel typical
Penetration Resolution: 30AWG, the wire visible below 15.9mm thick aluminum
Film Safety: Guarantee ASA/ISO 1600 Film
♦Image System:
Technical Principle: Dual-energy X-ray Imaging; L shaped Array
X-ray Sensor: L-Shaped Photodiode ARRAY( multi-energetic ), 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17inch
Image Display: High resolution of 1024*1280 pixel; Image Grey Level: 65536
Image Recall: All preceding images recallable, retrieval.
Explosives & Narcotics detection: Explosives & Narcotics alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability.
♦Operating Environment:
Operation temperature/Humidity: 5°C-40°C/10%-95%( non-condensing )
Storage Temperature /Humidity: -20°C to 60°C/5%-95%( non-condensing )
Operation Power: 220VAC ( Optional: 100VAC, 110VAC, 120VAC, 200VAC )
Power consumption: 1.0KW ( max ), 0.7KW ( working )
Noise: < 58db
Dimensions: 2195mm*902mm*1362mm ( L*W*H )
Device weight: 465KG
G.Weight: 700KG
Packing volume: 5.54CBM
